modifying bonnet hinges

34 replies to this topic

#1 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 13 June 2011 - 06:35 PM

Hi guys just wondering how people are modifying their bonnet hinges on a s13 so the bonnet sits upright by itself?
Any advice would be greatly appreciated, I would post a photo but Im not sure how.

#2 xris

  • Joined:05-November 02
  • Location:Australia VIC

Posted 14 June 2011 - 07:30 AM

Just lift the bonnet and you will notice tab on the hinge that hits and stops it from going any further. cut this tab off. and you will be able to put the bonnet all the way back to the window.

#3 munchhunch

  • Joined:26-August 10
  • Location:Australia NSW
  • Car:180sx

Posted 14 June 2011 - 07:42 AM

Do it it comes in so handy if you spend alot of time chilling in your engine bay, saves you having to the bonnet on and off constantly, I will be doing mine before the motor goes back in

#4 Simon-S14

  • Joined:18-May 04
  • Location:Australia SA

Posted 14 June 2011 - 07:46 AM

As xris says but file tab back. U still want friction and tension on it when vertical makes it less resistant to be blown back over

#5 Biggie

  • Joined:10-May 07
  • Location:Australia NSW
  • Car:96' Type X

Posted 14 June 2011 - 07:52 AM

Vertical bonnet has finally made it big in aus. Just be careful working with bonnet all the way up as they have a prepensity to blow shut as Simon mentions

#6 Nic19

  • Joined:26-October 05
  • Location:Australia VIC
  • Car:Two tone s13

Posted 14 June 2011 - 09:39 AM

Yeh don't leave tools on the side of the engine bay. My bonnet blew shut and bent the hinges, cos I left stuff there.

#7 Deep-Dish

  • Joined:20-May 09
  • Location:Australia VIC

Posted 14 June 2011 - 04:27 PM

Ive heard tales of the bonet (standard, not carbon or fibre glass) cracking the windscreen from being tilted that far back?

#8 ditme

  • Joined:21-December 09
  • Location:Asia
  • Car:peeeweee50

Posted 14 June 2011 - 04:43 PM

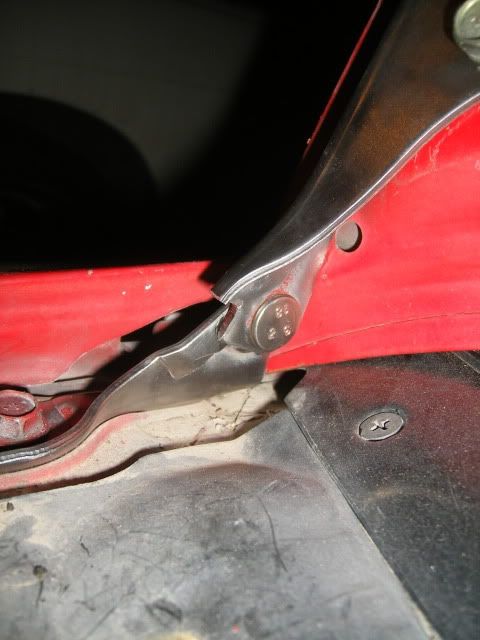

Posted Image

#9 mitch bucannon

  • Joined:22-February 06
  • Location:Australia NSW

Posted 15 June 2011 - 08:25 PM

Does the back of the bonnet foul onthe guard as your going past the usual height?

#10 Simon-S14

  • Joined:18-May 04
  • Location:Australia SA

Posted 15 June 2011 - 08:33 PM

View Postmitch bucannon, on 15 June 2011 - 08:25 PM, said:

Does the back of the bonnet foul onthe guard as your going past the usual height?

on some cars yes.. on a 180 it does it far worse then an s14 S1 thats for sure.

#11 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 17 June 2011 - 08:33 AM

Thanks heaps for all the info guys, I was wondering about the possibility of it blowing shut
also wondering if people get rid of their bonnet holding up stick thing and if so do they get rid of the bracket it attaches to?
This is on a track only car

#12 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 06 July 2011 - 06:13 PM

will the bonnet still foul on the gaurds if i have spacers between the bonnet and hinges?

#13 hinto2

  • Joined:04-December 07
  • Location:Australia SA

Posted 06 July 2011 - 06:16 PM

Do it n find out :)

#14 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 27 July 2011 - 06:14 PM

do you guys pull the hinges apart to file them down?

#15 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 23 August 2011 - 08:12 PM

how the f$$k are you guys getting the file inside the hinge to file down the tab

#16 Simon-S14

  • Joined:18-May 04
  • Location:Australia SA

Posted 23 August 2011 - 09:16 PM

u dont need to... use a hammer and chizel, bend that tab back

#17 (Locky)

  • Joined:23-July 07
  • Location:Australia NSW
  • Car:kouki s14

Posted 23 August 2011 - 09:21 PM

my 14 seemed to have more of a buldge thana tab...

just took the bonnet off and attacked it with a grinder, hindges still on the car...

managed to make it work :lol:

#18 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 23 August 2011 - 10:12 PM

thanks guys will use hammer and chisel tomorow

#19 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 23 August 2011 - 10:13 PM

whilst on the subject how come noone runs the under bonnet insulation thing

#20 R32GTRS

  • Joined:24-August 09
  • Location:Australia SA
  • Car:RB25 R32gtst

Posted 24 August 2011 - 09:29 AM

hammer and chisel wtf its not wooden

#21 TougeR34

  • Joined:01-October 06
  • Location:Australia NSW
  • Car:R34 GTT

Posted 24 August 2011 - 09:43 AM

being that far vertical = wind catch soooooooo easy

I'd put a lock or a secondary bonnet restraint so even with a quick gust of wind it cant go back further and smash the windscreen.

#22 NickRB20

  • Joined:24-November 04
  • Location:Australia VIC
  • Car:Sil80, 32 4dr

Posted 24 August 2011 - 09:49 AM

View PostR32GTRS, on 24 August 2011 - 09:29 AM, said:

hammer and chisel wtf its not wooden
Not sure if trolling

Or just stupid

#23 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 24 August 2011 - 01:57 PM

bonnet came open whilst doing 100kmh on my silvia didnt smash windscreen, it takes alot of force to smash the winscreen. Does anyone have some kind of way of stopping bonnet from blowing shut or back into windscreen?

#24 3AM

  • Joined:10-October 04
  • Location:Australia NSW

Posted 24 August 2011 - 02:17 PM

I know of 2 windscreens that are cracked now after doing this mod.. it does increase chance of it cracking, windscreens are not meant to have shit resting against them.

#25 dave1600

  • Joined:22-June 05

Posted 24 August 2011 - 03:17 PM

View PostR32GTRS, on 24 August 2011 - 09:29 AM, said:

hammer and chisel wtf its not wooden

I think he may have meant one of these

Posted Image

#26 mik fader

  • Joined:26-June 08
  • Car:s13 nissan silvia

Posted 24 August 2011 - 05:52 PM

I wasnt aware that the bonnet goes all the way back to rest on the windscreen

#27 Rolled Cambers

  • Joined:14-July 09
  • Location:Australia VIC
  • Car:Nissan Silvia s13.

Posted 24 August 2011 - 05:58 PM

Are you going to use the engine bay constantly?
If not there's no point, I'd only do it if I'm pulling/dropping engines/boxes in and out constantly. Apart from getting a crane in there easy there's no need.
Unless you want it for autosalon.

#28 mrsr20det

  • Joined:09-August 11
  • Location:Australia VIC
  • Car:s14 s2

Posted 17 September 2011 - 09:34 AM

Why not set up gas struts and yu will never have to worry about it falling back or forward

#29 DNTBNVS15

  • Joined:23-March 11
  • Location:Australia SA
  • Car:2002 ADM S15 Silvia

Posted 17 September 2011 - 09:51 AM

View Post200sexex, on 17 September 2011 - 09:34 AM, said:

Why not set up gas struts and yu will never have to worry about it falling back or forward
Have you done this... Or Has anyone done this on S15?? I was looking at doing it but not sure how involved it is.

#30 Daedalus

  • Joined:08-September 11
  • Location:Australia NSW

Posted 17 September 2011 - 12:24 PM

dont buy those ebay gas struts, biggest waste of money ever, bonnet would not shut properly with them, and they werent strong enough to hold a stock bonnet up...
