Vacuum Diagrams For "S" Series Nissans

  • This topic is locked This topic is locked
No replies to this topic

#1 Guest_THE ASHMAN_*

Posted 27 August 2007 - 06:35 PM

It seems that every 2 weeks somebody is looking for a vaccum diagram for an engine. So rather than post them up here and there it is easier to post them all at once in their own dedicated article.

NOTE* These diagrams are for the JAP Spec vehicles, there may be minor differences in emission controls etc, between the AUS and JAP spec. Unless specified all diagrams are for BOTH the auto and manual vehicles.

S13 CA18DE:

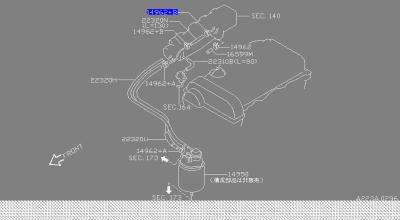

Attached Image: CA18DE.jpg

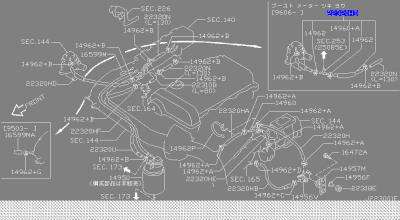

Attached Image: CA18DET AUTO.jpg
S13 CA18DET (MAN):

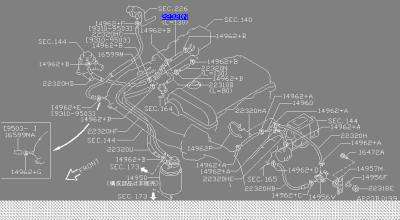

Attached Image: CA18DET MAN.jpg
S13 SR20DE:

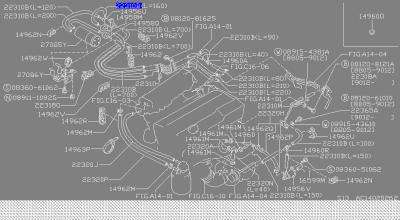

Attached Image: S13 SR20DE.jpg
S13 SR20DET:

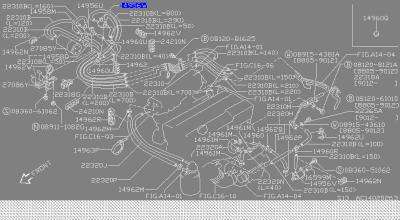

Attached Image: S13 SR20DET.jpg
S14 SR20DE:

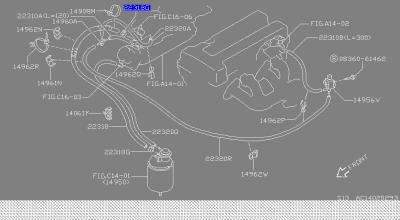

Attached Image: S14 SR20DE.jpg
S14 SR20DET (1994-1996 MODEL):
Attached Image: S14 SR20DET up to 96.jpg
S14 SR20DET (1996 ONWARDS):
Attached Image: S14 SR20DET 96 on.jpg
S15 SR20DE:
Attached Image: S15 SR20DE.jpg
S15 SR20DET:
Attached Image: S15 SR20DET.jpg
